What Is an Automotive Relay and How Does It Work

An automotive relay is an electrically operated switch that lets a small control signal, such as a dashboard switch or an engine control unit output, turn a high-current circuit on or off. In practical terms, a 12V automotive relay allows a thin, low-current wire to safely command a heavy load such as a headlight, fuel pump, horn, or cooling fan, without routing large current through the switch itself. This single function, separating the control circuit from the load circuit, is why the car relay remains one of the most widely used components in modern vehicle wiring.

Inside the relay housing there are two functional sides: a coil that generates a magnetic field when energized, and a set of contacts that physically open or close under that magnetic force. When current flows through the coil, the resulting magnetic field pulls an armature toward the core, which moves the contact blade and completes the load circuit. When the coil is de-energized, a return spring pulls the armature back and the contact returns to its resting position. This makes the automotive relay a simple, reliable, and repeatable switching device for vehicle electrical systems.

• Separates a low-current control signal from a high-current load circuit
• Protects switches, sensors, and control modules from current overload
• Allows one small switch to control a circuit requiring much higher current
• Provides electrical isolation between control wiring and the load circuit

Internal Structure of a Car Relay

A standard car relay built to the common ISO terminal layout uses four or five terminals, each assigned a fixed function so that wiring stays consistent across different relay brands and vehicle platforms. Terminals 85 and 86 belong to the coil side and accept the low-current control signal, while terminals 30 and 87 belong to the contact side and carry the switched load current. Five-pin relays add terminal 87a, a normally closed contact, which is useful in changeover applications such as flasher circuits or dual-mode lighting control.

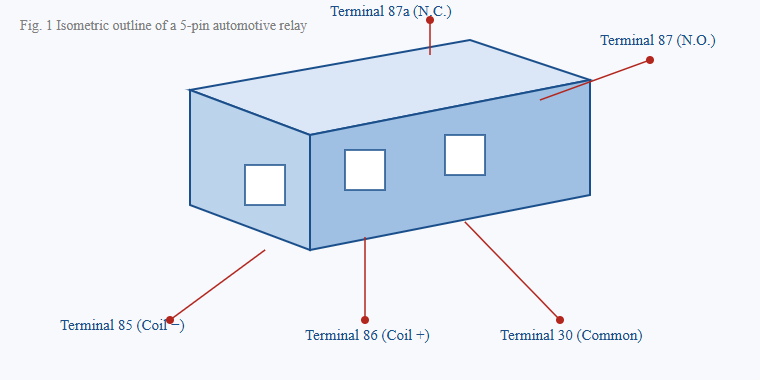

Isometric View and Terminal LayoutTerminal 87a (N.C.)

Schematic illustration only, intended to show typical terminal placement on a standard 5-pin automotive relay housing.

Main Types of Automotive Relays by Footprint

Automotive relays are generally grouped by their physical footprint and mounting style rather than by brand, which keeps sourcing flexible for vehicle harness designers. The three most common footprints in passenger vehicles and commercial equipment are the ISO Micro relay, the ISO Mini relay, and the standard ISO relay, each suited to a different combination of available space and switched current.

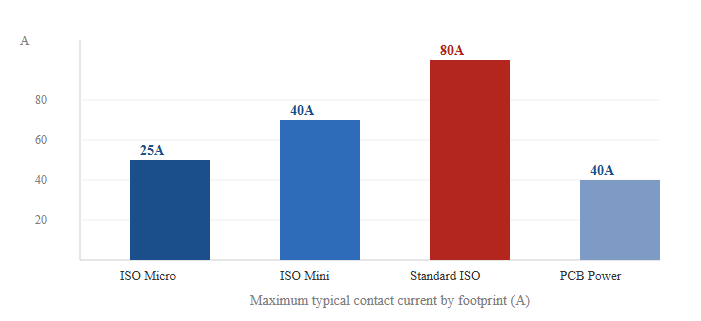

Typical Contact Current Ratings Across Relay Footprints

The chart below compares the upper end of the typical contact current rating for each common relay footprint, expressed in amperes. As shown, the standard ISO relay footprint generally supports the highest current among the group, which is why it is the default choice for starter circuits, cooling fans, and other heavy loads. The ISO Micro and PCB power relay footprints trade some current capacity for a smaller board area, making them better suited to space-constrained locations such as fuse boxes and control modules. Designers typically select the smallest footprint that still leaves a safety margin above the expected continuous load current.

Bar chart illustrating the upper end of typical contact current ratings for common automotive relay footprints; actual ratings vary by individual part number and contact material.

Where Automotive Relays Are Used in a Vehicle

Because an automotive relay can switch a heavy load from a light control signal, it appears throughout the vehicle wherever a small switch needs to operate a power-hungry component. Common locations include the engine bay fuse and relay box, the dashboard switch panel, the body control module, and auxiliary lighting harnesses added after the vehicle leaves the factory.

1. Headlight, fog light, and daytime running light circuits
2. Fuel pump and engine cooling fan control
3. Starter motor and ignition switching circuits
4. Horn, air conditioning compressor clutch, and power windows
5. Aftermarket accessories such as winches, light bars, and audio amplifiers

Beyond passenger cars, the same relay footprints are used in trucks, buses, agricultural machinery, and marine equipment, since the ISO terminal layout and relay socket dimensions are widely standardized across the industry.

Relay Life Expectancy and Load Current

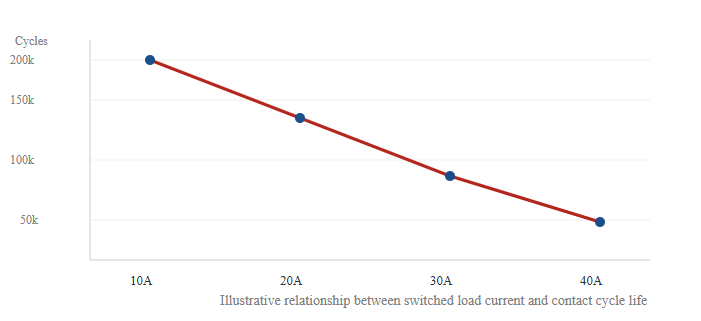

A well-known engineering pattern in relay design is that electrical contact life decreases as the switched load current increases, since higher current causes more contact wear and arc erosion with every operating cycle. The line chart below illustrates this general relationship using representative, rounded figures rather than a certified test result for any single part number, and is intended to show the shape of the trend rather than an exact guaranteed value.

Line chart showing the typical downward trend of contact cycle life as switched current rises, used here for illustration of a general design principle rather than a specific test certificate.

This is one reason experienced harness designers add a margin between the expected continuous load and the rated contact current of the relay, rather than selecting a relay that is rated exactly at the load value.

How to Select a Reliable Automotive Relay

Choosing the right car relay for a given circuit involves more than matching the coil voltage. The following factors are commonly checked by harness engineers and aftermarket installers before finalizing a relay specification.

Coil Voltage and Control Signal

Most passenger vehicle circuits use a 12V coil, while many trucks and buses use a 24V coil, so confirming the vehicle's electrical system voltage before ordering avoids a mismatch between the control signal and the relay coil.

Contact Rating and Safety Margin

The contact current rating should comfortably exceed the steady-state current of the connected load, particularly for inductive loads such as motors and compressor clutches that draw a higher inrush current at start-up.

Sealing and Environmental Resistance

Relays mounted in the engine bay or underbody benefit from a sealed housing that resists moisture, dust, vibration, and temperature swings, since these conditions are far harsher than a typical indoor electronics environment.

Certification and Documentation

For OEM and ODM programs, relays carrying recognized third-party certification marks and complete test documentation are easier to qualify into a vehicle program and to support through long production runs.

Quality Systems and Certification Coverage

Relay manufacturing for automotive applications generally follows a documented quality management system, with ISO9001:2015 being the most common baseline framework for design control, incoming material inspection, and finished-goods testing. Beyond the management system itself, individual relay families are often submitted for independent product-level certification covering safety and environmental compliance.

About Ningbo Helishun Electron Co.,Ltd.

Ningbo Helishun Electron Co.,Ltd. was founded in 2000 and is located in Ningbo City, on the coastline of the East Sea. The company now covers 8800 square meters and is specialized in researching, developing, and producing relays, including automotive relay product lines built on the ISO Micro, ISO Mini, and standard ISO footprints described above.

The company has introduced advanced technology and testing equipment from home and abroad and has built up a dependable quality management system, having passed ISO9001:2015 quality system certification. The characteristics and mounting layout of its products are kept consistent with international counterparts, and its relays have gained certificates including UL, TUV, CE, and CQC, while complying with the EU RoHS requirement. "HELISHUN" relays are sold in both home and overseas markets and are used in household electrical appliances, telecommunication equipment, automation control, automobiles, and instruments and meters.

Ningbo Helishun pursues high quality through all-round management and careful manufacturing, aiming to earn customer satisfaction through outstanding product quality and responsive service. The company welcomes customers from home and abroad to visit its facility, and welcomes OEM and ODM partners interested in extensive cooperation.

Frequently Asked Questions

Q1: What does the automotive relay coil voltage need to match?

The coil voltage must match the vehicle's electrical system, most commonly 12V for passenger cars and 24V for many trucks and buses, so that the control circuit can reliably energize the coil.

Q2: How many pins does a typical car relay have?

Most automotive relays use a 4-pin or 5-pin layout, with the 5-pin version adding a normally closed contact at terminal 87a for changeover applications.

Q3: Can an automotive relay be mounted directly on a circuit board?

Yes, PCB power relays are designed with pins shaped for direct soldering onto a circuit board, which is common in fuse and relay box modules and in compact control units.

Q4: Why does a relay sometimes click without the load turning on?

An audible click usually means the coil side is energizing the armature, but the load circuit may still have an open connection, a blown fuse, or worn contacts preventing current from reaching the load.

Q5: What environmental conditions should an automotive relay withstand?

Relays mounted in or near the engine bay should withstand vibration, temperature swings, humidity, and dust, which is why sealed housings are commonly specified for these locations.
